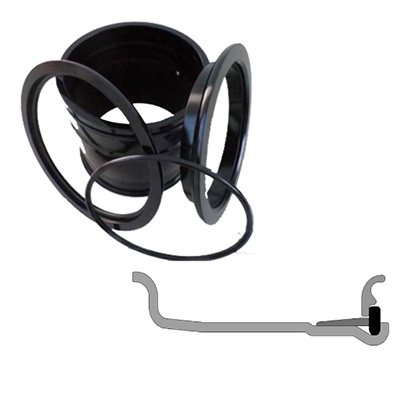

Wheel Rim Profile Steel

Wheel Rim Profile Steel

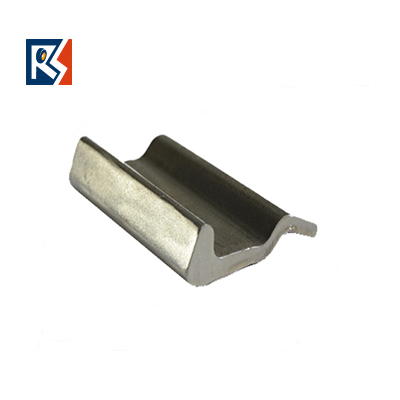

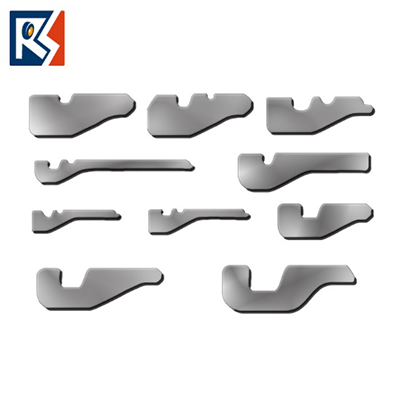

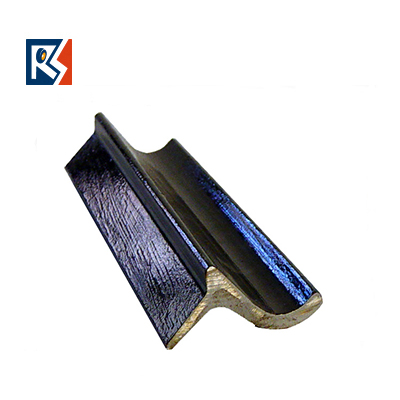

Gutter section steel (upper end section steel): special section steel of off the road construction machinery steel wheel accessories , welded with steel wheel rim body. Hot-rolled section steel in shape F.

Specifications: double grooved gutter section steel, single channel gutter section steel/tubeless gutter section steel, tube gutter section steel.

Material: Q235、Q345 etc.

Length: 3.72m or as your requirement.

Range of application:special section steel for Off-road construction machinery load steel wheel . Special wheel section steel of loaders, Bulldozers, Graders and Rollers.

Application: Tubeless steel rim, inner tube rim.

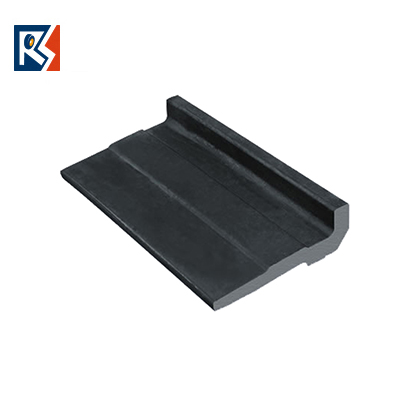

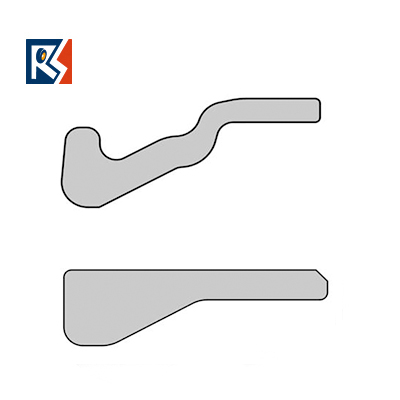

Bead seat/back section section steel:  Shaped hot-rolled section steel. Special shaped section steel for multi-piece tubeless construction machinery steel ring seat accessories.

Specification: Bead seat band, back section

Material: Q345 etc.

Length: 4m、6m or as your requirement.

Range of application:special section steel for Off-road construction machinery load steel wheel . Special wheel section steel of loaders, Bulldozers, Graders and Rollers.

Range of application: Tubeless steel wheel.

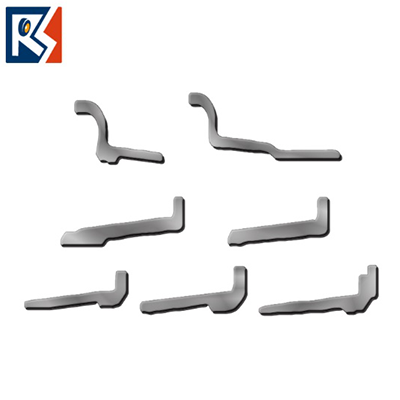

Side ring section steel: According to the structure, it is divided into multi - piece steel rings,hot rolled section steel in special shape which is required by interlocking safety requirements.

Specification: Section steel Series 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0

Material: Q345

Length: As your requirement.

Range of application: Series 8~24 inches two-piece load wheel rim elastic side ring accessories - two-piece load steel ring Series 8~24 inches special wheel elastic side ring accessories.

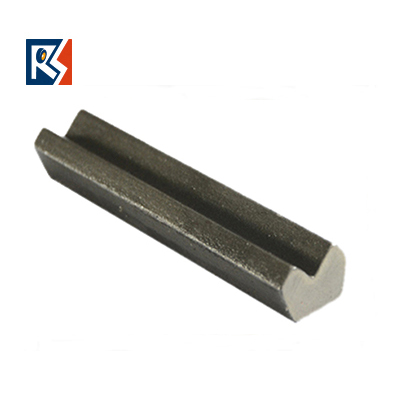

Locking Ring

Hot rolled shaped welded parts for off the road  engineering machinery wheel rims, mechanical property and elasticity ensured.

Material: 50#,50Mn

Diameter: 15-63 inches

Specifications: light duty type ring, medium duty type lock ring, heavy  duty lock ring, special lock ring.
Advantage of our locking ring:

1.Section steel for locking ring are all produced by   ourselves,we could develop different specifications with competitive   prices,better quality and cost performance;

2.With professional production equipment such as 4 sets of  oil press machines 500T and heating furnace to ensure elasticity,

3.100% inspection guarantee the quality;

4.The monthly production capacity reached 80,000 pieces, which  meets the customer's delivery requirements at any time and any quantity.

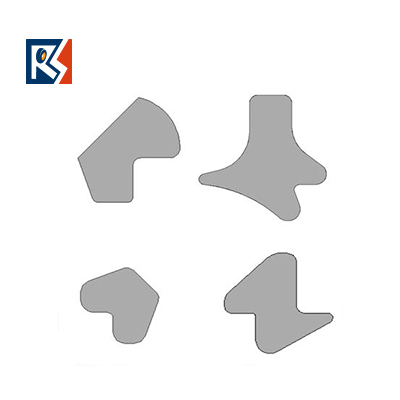

Demounting ring section steel:

Hot rolled shaped section steel for special structure rims  without disc to connect with axle and meet the requirement of heavy loading.

Specifications: Type Ⅰ,TypeⅡ demounting ring.

Material: Q345

Length: 6.6m or as required

Range of application:  section steel of demountable ring for demountable rim size of 22.5x8.25,22.5x9.00  etc.

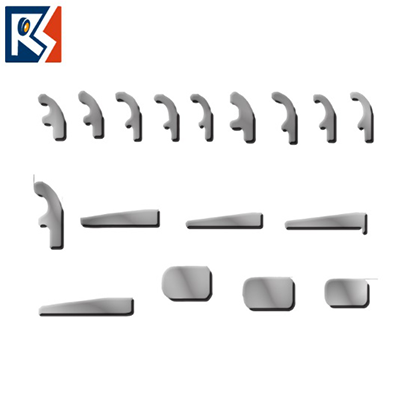

Special section steel for forklift steel wheel: special section steel for multi- piece forklift steel wheel,side ring,lock ring and bead seat.

Applicable steel ring type: 3.00D-8, 4.33R-8, 4.00/6.00E-9, 5.5F-10, 6.00S-12, 6.5/7.0/7.5/8.0-15 etc.

Material: Q235/Q345/45#/65Mn
