Principle of Matching Bolt Diameter with Bolt Hole for Steel Wheel Rim

The matching of bolt hole diameter to bolt diameter is a critical aspect of mechanical design, directly impacting assembly smoothness and connection reliability. The matching principle should be determined based on assembly precision, material properties, and application scenarios.

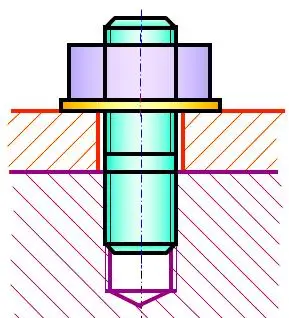

General matching principle: The bolt hole diameter should generally be slightly larger than the nominal bolt diameter to ensure assembly flexibility and avoid interference.

Common clearance ranges include:

Standard assembly: The hole diameter is 0.1 mm to 0.3 mm larger than the bolt diameter, suitable for most general applications.

Medium-precision assembly: The hole diameter can be 1 mm to 2 mm larger than the bolt diameter, facilitating quick installation, especially for larger bolts.

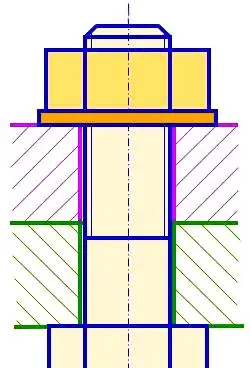

Precision assembly: When high concentricity or anti-loosening is required, the difference between the hole diameter and the bolt diameter can be reduced to 0.01 mm to 0.1 mm, known as reamed hole bolt connection, requiring strict tolerance control.
