Different Structures of Steel Wheel Spokes

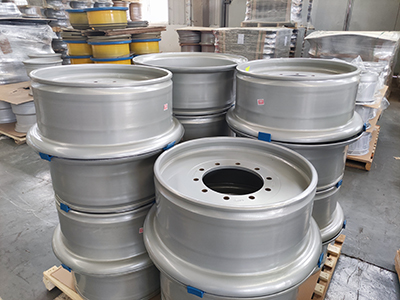

The First: Straight Spoke
The most common structure with the widest applicability. Processing method: Cut and cut the steel plate, then perform turning and machining, and finally weld it onto the wheel rim body.

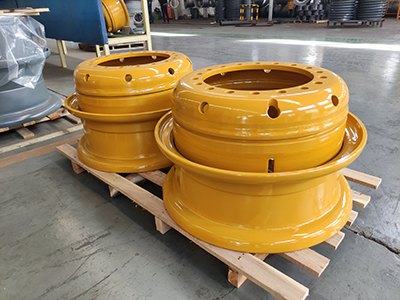

The Second: Formed Spoke
Mainly used for automotive rims and forklift rims. Based on straight spoke, further hot pressing or roll forming is carried out to obtain curved spoke plates, which are then machined and machined. Bent spoke plates often have ventilation holes or through holes for tire inflation.


The Third: Non Spoke or no disc
Mainly used for mining dump trucks. The structural feature is that there are at least two 28 degree limit blocks welded along the inner edge of the gutter ring. The size specifications of the steel rim is 24 inches or bigger size.
